HEAT EXCHANGERS |
|
|||||||||||||||||||||
|
|
RefriVerde Industrial Air Conditioning and Refrigeration
Heat Transfer processes applied in Air Conditioning , Refrigeration , and Industry
Engineered Equipment manufactured to end client´s requirements , based on RefriVerde´s Designs
|
|
||||||||||||||||||||
|
|
Air Conditioning and Refrigeration Equipment and Components associated with the Low-Side of the Refrigeration System manufactured according to specifications of RefriVerde
Evaporators with higher Heat Transfer and lower Pressure Loss result in a higher Evaporation Temperature and thus we achieve the objective by working with less Energy ► Air Cooler Evaporators for Freezing Tunnels ► Fluid Cooler Evaporators ► Refrigeration Cooling Units ► Biogas, Natural Gas or Compressed Air Dryers with DX Evaporator
Equipment and Components associated with the High-Side of the Refrigeration System manufactured according to specifications of RefriVerde ► Air or Water cooled condensers ► Evaporative Condensers ► Evaporative Fluid Coolers ► Cooling Towers
|
|
||||||||||||||||||||
|
|
HEAT EXCHANGER EQUIPMENT
Shell and tube heat exchangers
Heat Exchangers with mechanically expanded or welded copper , copper-nickel , or stainless steel tubing . . . and equipment for the refrigeration , air conditioning , and industrial processes industries ► Enfriadores de Fluidos Evaporativos , Atmosfericos y Tipo Baudelot ► Water Chiller Evaporators , 2-Pass and up to 4-Circiuit ► Water Cooler Refrigerant Condensers ► Sub-Coolers , Economizers ► Compressed Air Dryers , After-Coolers ► Biogas and Natural Gas Dryers , Heat Recovery ► Oil Separators , Coolers and Filters ► Evaporative , Atmospheric and Baudelot Type Fluid Coolers
|
|
||||||||||||||||||||
|
UAR established in 1996
30 years of Heat Exchangers Manufacturing
ISO 9000 , ASME , CE , DI & D2 Certifications
|
Refrigeración Verde sells Heat Exchanger and Pressure Vessels manufactured by United A/C & R Co. Ltd.
Materials such as Copper or Copper-Nickel Tubing and Carbon Steel Shell , Seawater-Grade , Chemical-Grade , or other requirement or standard
Shell-Tubes DX and Flooded type Evaporators
Shell-Tubes Water cooled Condensers . Marine Condensers with Copper-Nickel Tubing
|
|
||||||||||||||||||||
|
|
Double Tube (Tube-in-Tube) Type
Heat Exchangers with concentric tubes where the refrigerant , water or cooling medium circulates in the annular section ► Sanitary Stainless Steel Coolers for Milk and Food ► Water cooler evaporators , one or several Passes ► High pressure gas coolers
|
|
||||||||||||||||||||
|
|
Remote Condensers y Dry-cooler
Air-cooled heat exchangers with aluminum fins and mechanically expanded copper or stainless steel tubing to ensure heat transfer . Alternatively , special coatings are available for protection against corrosive or saline atmospheres .
Ziehl-Abegg or EBM-PAPST Axial Fans , with EC (BLDC) motor used in refrigeration Condensers and Air Coolers
|
Remote Condenser , Thermo-Coil 90 RTr , V-shaped , Induced Draft
|
||||||||||||||||||||
|
Nacionales Asociados
Radiators with Flat Brass Tubing and Copper Fins Type 5/8” STC
|
Radiators , Aftercoolers , Oil Coolers and Engine Air Coolers for Industrial and Mining Applications
EBM-PAPST RadiPac-C centrifugal fans with Axial Discharge . Forced-draft fans for applications where the heat exchanger outlet temperature is high or high static pressure is required , such as with Microchannel Tube&Fin Type heat exchangers ; Sizes 280 to 630 mm
|
Microchannel Tube&Fin Type 3003 Aluminum Tubing and Fins Tube sizes : 18 , 25.4 , and 32 mm Fin density : 15 to 22 FPI
Heat Exchanger dimensions (please inquire) Maximum width 914 mm Maximum length 2,200 mm
|
||||||||||||||||||||
|
Operating principle of an Evaporative Condenser
|
Evaporative Condensers and Fluid Coolers
Galvanized sheet metal or all ANSI 304 stainless steel construction , Aerodynamically profiled Axial Fans with variable-speed EC motors or fixed-speed AC motors , heat exchangers with copper or stainless steel tubing
► Cooling of Diesel or Gas Engines in Power Plants for High and Low Temperature Systems ► Cooling of Air and Gas Compression Systems ► Transformer Oil Coolers ► Closed Circuits using Dry Coolers or Evaporative Coolers to replace Cooling Tower Systems where water hardness and/or lack of maintenance causes limescale to form in Condensers
|
Operating principle of an Evaporative Fluid Cooler
|
||||||||||||||||||||
|
|
Plate Heat Exchangers
► Brazed Plate Exchangers (Brazing) for HFC and Hydrocarbon refrigerants ► Semi-Welded Plate Exchangers for Ammonia ► Plate Exchangers with Packaging for Dairy and Food
|
|
||||||||||||||||||||
|
|
Heat Exchangers Steam Heaters

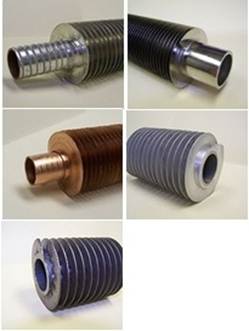

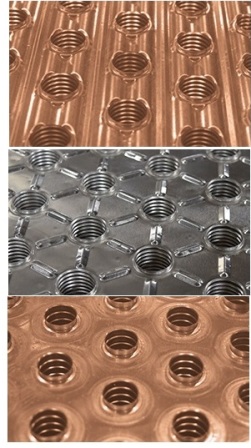

► Air Heaters Standard Single Tube construction with Restrictor Holes or Tube-in-Tube construction with inner Distribution Tubes ► Copper Pipe 5/8”- 0.020” or 1”- 0.035” (optional Copper-Nickel , Aluminum , Stainless Steel or Carbon Steel) ► Sheet Fins 0.0055 to 0.016” in Aluminum, Copper , Copper-Nickel , Stainless Steel or Carbon Steel . Three types ► Spiral Fins , Height 3/8” (1/2” Optional), Thickness 0.010” to 0.030” . Five Types, including Type “L” ► Capacities per AHRI 410 Standard
|
|
||||||||||||||||||||
|
|
|
Refrigeración Verde S.A.S. Barranquilla , Colombia
Issued in 26.11.02
|
||||||||||||||||||||
