		RefriVerde Industrial  Air Conditioning  and  Refrigeration  Engineered Equipment manufactured according to end User requirements by RefriVerde Designs and Specifications			Crosley Icyball –  Ammonia Absorption Refrigerator - 1928
		REFRIGERATION RefriVerde researches and studies Innovative Technologies applied in Refrigeration Systems ► Distributed Equipment (Plug-in)connected to a Water Loop where Chilled Water is used in Refrigeration Equipment Condensers ► Distributed Equipment with Variable Speed Compressor, 2-Stage Rotary Compressor for CO2 ► Centralized Units with Open Screw Compressors ► Variable Flow System , Refrigerant 507A , 410A , NH3 ► Air Cooled Water Chillers with NH3 and low refrigerant charge , ideal for integrating Refrigeration and Air Conditioning Systems in Supermarkets
Ice Bank Thermal Storage Biogas Lister Petter Engine Bitzer Open Compressor with Coupling Housing for the aligned of the Motor		REFRIGERATION IN RURAL FARMS ► Milk cooling from 35°C to 4°C in 3 hours Eight Refrigeration Systems from 64 to 412 kWh to Store 580 to 3770 kg of Ice overnight for 12 hours using a Biogas-Powered Generator , and then during the day to Cool 1200 to 8800 Liters of Milk from 35°C to 4°C in 3 hours and subsequent storage in 40 Liters Tanks in a Cold Room . A 90% Thermal Efficiency are considered for all  Systems COMPRESSOR : R410A at Te - 8°C , SH 10°K / Tc 45°C , SC 5K , Air Entering at 30°C · Danfoss Inverter Scroll Compressor with its Driver from 1500 to 6000 rpm · Condenser Coil with Liquid Receiver and Sub-Cooling circuit · Oil Separator , Suction Liquid Separator · Crankcase Heater , Discharge Gas Temperature Sensor ICE BANK THERMAL STORAGE : Milk Cooler with Water at 0°C from the 65% Ice Storage · Bank of copper tubes arranged for the formation of ice of optimal thickness · Ice thickness control and inventory · Tank with walls made of galvanized sheet metal and 100 mm of insulation GENSET : Lister Petter Engine using Natural Gas or Biogas for continuous use COLD ROOM : DX Cold Unit of Cold Room for Milk Storage at 4°C all the time , dimensions with approximate 40% free for 40 Liters Milk Tanks of 0.35 M Ø SOLAR ENERGY PANELS : Energy as a supplement for Solar 6 hours of for the operation of the Cold Room and the chilled water and milk Recirculation Pumps For more details , see the PDF file at the following link . . . Milk Cooling with Solar Energy + Thermal Storage , R410A Scroll Inverter ► Ice Production for small Fishing Vessels Air-cooled Condensing Unit equipped with an Open-type Bitzer Compressor , ensuring high reliability ; the refrigeration circuit remains free from contamination in the event of a motor burnout , as the motor can be repaired or replaced · Electrical Motor WEG W22 , IE3 Premium , 4-Poles (60 Hz) , IP 55 · Coupling and Coupling Housing for the aligned of the Motor · Cooled Shaft Seal by means of pressure oil · Air Cooled Condenser Coil with Sub-cooling circuit · Oil Separator , Liquid Receiver , Suction Liquid Separator · Suction and Discharge Valves , Crankcase Heater · Oil Pressure Switch , Discharge Gas Temperature Sensor · Optional features : Variable speed Motor For more details , see the PDF file at the following link . . . Solar and Engine Natural Gas Generator Driven Block Ice Maker			Danfoss Inverter Compressor
		Engineered Refrigeration  Equipment  "Custom Made" Air Conditioning Engineered Equipment according to Customer's requirements , Technical Specifications , Industrial Practices and Local Regulations RefriVerde  designs Refrigeration Engineered Equipment for  Temperature and Humidity Control in Industrial , Hospital , Pharmaceutical and Laboratories Applications ► Air Coolers & Freezer Units ► Equipment designed to Individual Quick Freeze (IQF) ► Crystallizers , Freeze Drying Chambers ► Cooling with the Absorption Cycle using Ammonia as Refrigerant ► Refrigeration Systems for Supermarkets and Refrigerated Storage Facilities to replace problematic centralized systems (Racks) with more than three compressors, extensive pipeline networks and astronomical quantities of refrigerant : ► Distributed Equipment (Plug-in) connected to a Water Loop ► Distributed Equipment with Variable Speed Compressor ► Centralized Units with Open Screw Compressors ► Equipment for Humidity Control in Supermarkets with condensation problems			Evaporators with higher Heat Transfer and lower Pressure Loss result in Systems working with higher Evaporation Temperature and therefore higher Cooling Capacity
		Thermal Storage and Engineered Equipment ► Ice banks for thermal accumulation ► Evaporators for Ice Makers ► Crystallizers , Lyophilization Chambers ► Refrigerant  Recirculation Systems
J&E Hall Screw Compressor Pack		Compressor Units and Water Chillers by RefriVerde  Designs & Specifications with J&E Hall Screw Compressors			J&E Hall Single-Screw Rotor

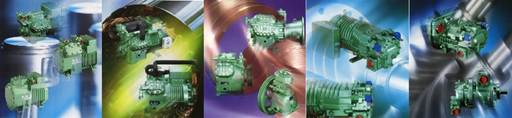

Bitzer Twin-Screw Rotors		Engineered Equipment with Bitzer Compresor manufactured according to end User requirements by RefriVerde Designs and Specifications ►Open Compressor Condensing Units are reliable and make industrial class refrigeration equipment ►The refrigeration system is not contaminated if the engine burns out , an engine that is easy to repair or replace Download PDF of Catalog Sheet in the following link Condensing Units R507A - Open Reciprocating Compressor ► 2-Stage Bitzer  Piston Compressors for Ammonia prepared by  RefriVerde			Bitzer Ammonia Parallel Compressors Open Compressor Condensing Unit

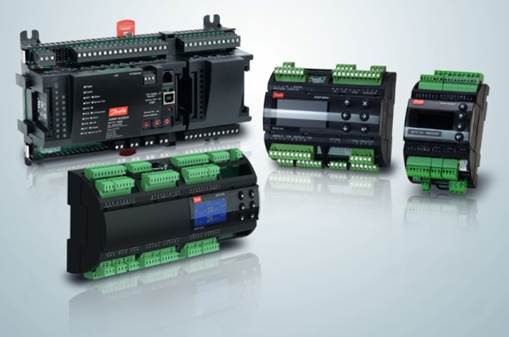

		Control and Monitoring Systems Control Systems and Monitoring Programs with  Danfoss , Carel  or  Siemens components , with decades of experience in the Control and Supervision of Industrial and Supermarkets Refrigeration Systems Danfoss ADAP-KOOL Controllers			Programmable and Modular Controller Danfoss AS-XP05&10

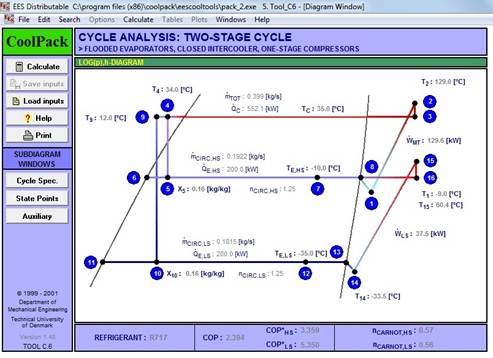

Tools Coolselector 2 , Danfoss , Program for component selection and sizing of pipes of Refrigeration Systems CoolPack , IPU ( DTU ) , Simulation Program to Refrigeration Systems Simple One-Stage CO2 , IPU (DTU) , Simulation Program of Transcritical  Cycles FrigoSim , FrigoSoft , Program for Design and Simulation of Refrigeration and Air Conditioning Systems @RefriVerde		Simulation Program to Refrigeration Systems			Literature of Interest Automatic Controls for Industrial Refrigeration Systems, Danfoss Handbook for Refrigerant Applications , Swep Ammonia Absorption Plants , Colibri Refrigeracion Verde S.A.S. Barranquilla , Colombia refriverde@gmail.com Issued in 26.09.26
